Track-It™ AC Event Data Logger From Monarch Instrument

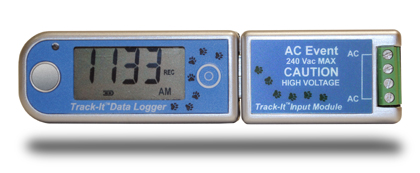

Track-It, AC, Event, Data, Logger, AC Event Data Logger, Monarch, InstrumentThe Track-It™ AC Event Data Logger is a battery powered stand alone compact data logger that records up to 64,000 on/off cycles. Use the Track-It™ AC Event Logger to monitor cycle patterns of pumps, blowers and other electrical equipment powered by 120 or 240Vac. The unit is easily configured using the included Track-It™ Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours or can be set to store a sample at every event.

The on board data storage is non-volatile so data will not be lost in the event of a depleted battery. The Track-It™AC Event Logger can also be used to record ambient temperature along with on/off cycles. This can help diagnose heat vs. cycle time issues. Information displayed on the LCD is also user programmable and can be sequenced by pressing the logger button. The multicolor LED indicator notifies the user of alarms, or general activity.

Features

  • Push button or program to start your record
  • Up to 64,000 samples per channel
  • Monitor cycle frequency and duration
  • AC ON or OFF reporting
  • 120/240 VAC 50/60 Hz
  • Alarm set points
  • Small compact size
  • Integral USB interface (no custom cable!)
  • Interactive software (included!)
  • One year battery life (battery included!)
  • Optional five year battery life
  • High accuracy and repeatability
  • Accurate internal clock (1 minute/year)
  • Multiple user programmable displays

Typical Uses

  • AC Motor efficiency studies
  • Predictive maintenance
  • Monitor lead/lag pump cycles
  • AC motor run times

Track-It, AC, Event, Data, Logger, AC Event Data Logger, Monarch, InstrumentTrack-It Software

Track-It™ Software is a powerful Windows based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data.Simply connect your Track-It™ data logger to an open USB port and begin communicating immediately.

Point and click to select your sample interval, alarm set points, engineering units, start recording triggers and LCD Displays.

View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the record. Track-It™ Software turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one click export function to automatically export stored data into an Excel spreadsheet.

Compatible with Win XP/Vista/7, 32 and 64 Bit
