ACR SmartReader 1 2-Channel Temperature Data Logger from ACR Systems

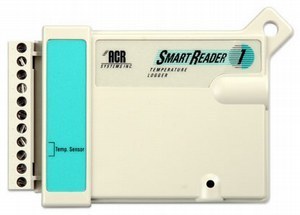

SmartReader 1,2-Channel,Temperature,Data,Logger,ACR,SystemsACR SmartReader 1 is a simple and easy-to-use 2-channel temperature data logger for monitoring and recording temperature. Quick and easy to set up, it works right out of the box, logging temperature readings from its internal, precision-calibrated temperature sensor. For added versatility, use the extra channel to record temperature (with an ACR thermistor probe), resistance or switch status.

Specifications

Memory Size
 32 KB
No. of Channels
 Two (one for the internal temperature sensor and one for remote sensing of temperature, resistance, or switch status)

ACR ET Series Thermistor Probes

(SmartReader 1 works with any NTC thermistor probe)

General Purpose
 -35 to 95°C (-30 to 200°F)
Low Temperature
 -60 to 55°C (-75 to 130°F)
Low Temp Penetration
 -60 to 55°C (-75 to 130°F)
High Temperature
 10 to 170°C (50 to 335°F)
Oven Temperature
 70 to 255°C (155 to 490°F)
Skin Surface Temperature
 20 to 40°C (68 to 104°F)
Pipe Surface Temperature
 -35 to 95°C (-30 to 200°F)
Waterproof Temperature
 -40 to 105°C (-40 to 221°F)

Ordering Information

Model Memory Catalogue #
SR-001 32 KB 01-0024
