This
wireless weather station provides accurate, reliable weather
monitoring in a self-contained, easy-to-install system.
Includes outdoor sensor array and LCD console.
Mounting hardware included; mounting pole sold separately.
Features

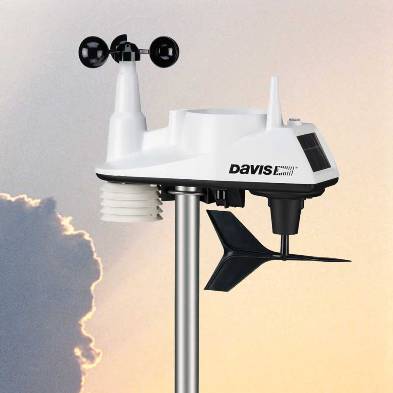

The new Davis Vantage Vue weather station combines Davis'
legendary accuracy and rugged durability into a compact
station that's easy to set up and use. Vantage Vue includes
a sleek but tough outdoor sensor array and a distinctive
LCD console. Its unique Weather Center function provides
additional information on each weather variable. In addition,
Davis has made Vantage Vue radio-compatible with our flagship
Vantage Pro2 professional stations so you can mix-and-match
most components.
Station Includes:
- Integrated Sensor Suite including temperature, wind,
and rain sensors
- Console
- Mounting hardware (mounting pole sold separately
Console
-
TIME & DATE
View the current time and date or time of sunrise/sunset.
-
MOON PHASE
See the eight phases of the moon from new to full.
-
TEMPERATURE & HUMIDITY
Console updates outside temperature every 10 seconds and
inside temperature every minute. In addition, outside
humidity Updates every 50 seconds and inside humidity
every minute.
-
RETRANSMITS
Main console can extend range to additional consoles up
to 1,000 ft. (300 m).
-
BAROMETER
Five-position trend arrow shows whether barometric pressure
is rising, falling, or stable.
-
VARIABLE DISPLAY OPTIONS
See updated variables every 10 seconds for heat index
and wind chill to get a better "feel" for the
outside environment.
-
RAIN
Console updates rain totals and rain rate every 20 seconds
for the last 25 hours, days, months.
-
"CHANGE IN WEATHER SINCE YESTERDAY"
FEATURE
Allows comparisons of changes of temperature and barometric
pressure from day to day.
-
WEATHER CENTER
Weather Center provides additional information for each
weather variable, such as daily highs and lows, temperature
changes by the hour and barometric value changes. Also
displays astronomical data such as meteor showers.
-
USER-FRIENDLY KEYPAD
Domed buttons are easy to sense and press. Glow-in-the-dark
keypad buttons give you access to weather information
all day and all night. The Done key returns user to "current"
screen from anywhere in the program.
-
GRAPHS
Graph the last 25 hours, days or months. View up to 50
graphs including temperature, rain, rain rate, wind and
barometric pressure—all on the console.
-
"THIS TIME YESTER DAY" FEATURE
Data point on the graph indicates the weather during the
same time yesterday to help compare and analyze day-to-day
weather trends.
-
ALARMS
Set 22 simultaneous, different alarms to warn of dangers
such as high winds, freezing temperatures, rain rate,
flood warning, and more.
-
WIND SPEED
See windspeed updates every 2.5 seconds. Displays windspeed
in miles per hour, meters per second, kilometers per hour
and knots. Provides the average and high wind speed for
two-minute and ten-minute intervals.
-
WIRELESS
Frequency-hopping spread spectrum radio ensures consistent
transmission up to 1,000 ft. (300 m) from integrated sensor
suite to console.
-
RAIN COLLECTOR
Self-emptying tipping spoon measures rain with .01"
(0.2mm) resolution.
-
ANEMOMETER
Vantage Vue records wind speeds as low as 2 mph (3 km/h)
and as high as 150 mph (241 km/h).
-
WEATHER PROOF COVER
Corrosion-resistant cover provides durability in extreme
conditions. Electronics are potted or over-molded for
added moisture shielding.
-
RADIATION SHIELD
Provides excellent protection from solar radiation and
other sources of radiated and reflected heat.
-
TEMPERATURE/RELATIVE HUMIDITY
Provides outside temperature readings from -40°F to
150°F (-40°C to 65°C). Also measures relative
humidity from 0 to 100%.
-
EASY INSTALLATION
Installs easily and quickly with included mounting hardware
kit.
-
WIND DIRECTION
Measures wind direction in compass points or degrees.
-
SOLAR PANEL
Energizes the station during the day. On-board super capacitor
provides power at night. Lithium battery provides backup
when needed.
-
BUBBLE LEVEL
Allows for more accurate installation and better data
collection.
Available
in four versions:
-
US (United States): Some products do not
include all features listed.
-
Units of Measure: Data is reported in
US standard units.
-
Data Transmission: For products that use
wireless radio data transmission, US version uses US radio
frequency from 902 to 928 MHz. If product transmits data
via cellular connection, the included SIM is for use in
the USA only and requires a US Service Plan.
-
Rain Data: For products that report rain
data, the rain collector is calibrated to 0.01 inch.
-
Electrical Power Supply: Units shipped
with an electrical power supply will have a US power adapter.
USM (United
States, metric): Some products do not include all features
listed.
-
Units of Measure: Data is reported in
Metric units.
-
Data Transmission: For products that use
wireless radio data transmission, USM version uses US
radio frequency from 902 to 928 MHz. If product transmits
data via cellular connection, the included SIM is for
use in the USA only and requires a US Service Plan.
-
Rain Data: For products that report rain
data, the rain collector is calibrated to 0.2mm.
-
Electrical Power Supply: Units shipped
with an electrical power supply will have a US power adapter.
UK (United
Kingdom): Some products do not include all features listed.
Not available for use/purchase within the USA.
-
Units of Measure: Data is reported in
Metric units.
-
Data Transmission: For products that use
wireless radio data transmission, UK version uses UK radio
frequency 868 MHz. If product transmits data via cellular
connection, the included SIM is not for use in the USA
and may be restricted to specific countries.
-
Rain Data: For products that report rain
data, the rain collector is calibrated to 0.2mm.
-
Electrical Power Supply: Units shipped
with an electrical power supply will have a UK power adapter.
EU (Europe):
Some products do not include all features listed. Not
available for use/purchase within the USA.
-
Units of Measure: Data is reported in
Metric units.
-
Data Transmission: For products that use
wireless radio data transmission, EU version uses EU radio
frequency 868 MHz. If product transmits data via cellular
connection, the included SIM is not for use in the USA
and may be restricted to specific countries.
-
Rain Data: For products that report rain
data, the rain collector is calibrated to 0.2mm.
-
Electrical Power Supply: Units shipped
with an electrical power supply will have a Euro power
adapter.
