Applicable engines |
■ Gasoline and diesel engines
■ General rotating objects |
Compatible detectors |

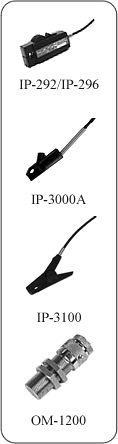

- IP-292/296 Ignition pulse detector
- IP-3000A/3100 Ignition pulse detector
- OM-1200 Ignition pulse detector
- TTL signal output detectors
|
Object of measurement |

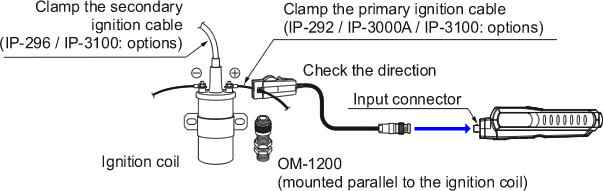

Ignition coil, primary/secondary ignition cables, ECU rotation pulses (5-V) |
Calculation method |
Cycle calculation method |
Measurement time |
Within 1 s + the time required for one cycle |
Display |
5-digit LCD, with backlight (character height: 10.2 mm) |
Display update time |
1 ± 0.2 s |
Measurement units |
r/min (when the IP-292, IP-296, IP-3000A, IP-3100 or OM-1200 detector has been selected)
r/min, r/s, m/min, ms, COUNT (when a TTL signal output detector has been selected) |
Measurement ranges |
|
IP-292, IP-296, IP-3000A, IP-3100 OM-1200 |
TTL signal output detector |
r/min |
120 to 20000 |
100 to 99999 |
r/s |
- |
1.66 to 99999 |
m/min |
- |
0.3 to 99999 |
COUNT |
- |
0 to 99999 |
ms |
- |
0.6 to 300.0 |
*The number of pulses per rotation (0.5 to 200.0 P/R) is freely selectable. |
Measurement accuracy |
Displayed value* x (±0.02%) ±1 count
* The displayed value is the count value excluding figures after the decimal point. The measurement accuracy of the line speed depends on the rotational (r/min) accuracy. |
Peak hold function |
Maximum value (MAX), minimum value (MIN) |
Memory function |
20 data (MAX) |
Over-range function |
The over-range alarm (ERROR mark) is displayed when the measured value exceeds the display range. |
Rotation upper limit alarm function |
The upper limit alarm ( ↑ mark) is displayed when the number of rotations exceeds the preset upper limit value. |
Line speed calculation function |
Calculates the line speed from the preset diameter value (mm) and the measured number of rotations |
Accumulating function |
Provides a cumulative count of the input signal pulses |
Cycle measurement function |
Measures the input pulse cycle
(however, when the cycle is less than 1 s, measures the mean value of the input pulses) |
Trigger level adjustment function |
A rotary dial at the right-hand side of the device is used to adjust the trigger level. |
Analog output |
Output with respect to the displayed rotation values Output voltage: 0 to 1 V/0 to FS (FS is freely selectable)
Conversion method: 10-bit D/A conversion
Linearity: ±1%/FS
Output update time: Within 50 ms + the time required for 1 cycle
Temperature stability: ±0.05%/FS/°C (span & zero)
Setting error: ±0.5%/FS
Load resistance: At least 100 kΩ |
Monitor output |
Analog output for monitoring purposes after waveform reshaping of the sensor signal Load resistance: At least 100 kΩ |
Pulse output |
1 pulse output per signal detection Output voltage: Hi level: At least +4.5 V. Lo level: Up to +0.5 V
Output logic: Positive logic
Load resistance: At least 100 kΩ |
Power source |
Four AAA alkaline batteries or exclusive AC adapter (PB-7080, Option) |
Battery life |
At least 16 hours (when the backlight is OFF)
At least 8 hours (when the backlight is ON) |
Low battery alarm indicator |
A low battery alarm (LOW mark) is displayed when the battery voltage falls below 4.4 V. |
Operating temperature range |
0 to 40ºC |
Storage temperature range |
-10 to 50ºC |
Outer dimensions |
189.5 (W) x 47.5 (H) x 66 (D) mm |
Weight |
Approx. 280 g (including batteries) |
Accessories |
AAA alkaline batteries × 4, Carrying case |
