Machine Vision Stroboscopes MVS 115 and MVS 230

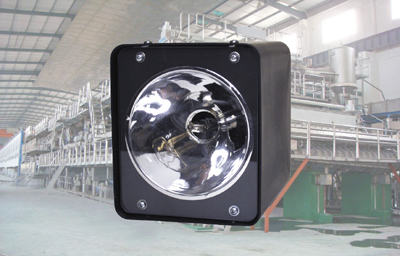

Machine Vision Stroboscopes, MVS 115, MVS 230, Machine, Vision, Stroboscopes, Monarch, InstrumentThe MVS Machine vision stroboscope is designed for fixed installation in any application requiring continuous stroboscopic visual inspection. The MVS has an extremely bright xenon light output with adjustable pulse width and focal distance for optimized target illumination. Connect your existing trigger signal or the optional Frequency Controller with LCD. Connect multiple units together in parallel for applications with wide illumination area requirements. Use the optional Audio Interface Box and microphone to create stunning audio driven visual effects.

Features
•Continuous (24/7) cool operation
•Extremely bright xenon light source
•Maximum flash rate of 9000 FPM
•Rugged fan cooled aluminum housing
•Tripod mountable
•Dependable and versatile
•Available with 115 or 230Vac input power
•Adjustable pulse width and focal distance
•Connect to existing trigger signal or use optional Frequency Controller

Inspection Applications
•Textile machines
•Label machines
•Paper machines
•Packaging processes
•Bottling processes
•Fluid droplet studies

Specifications

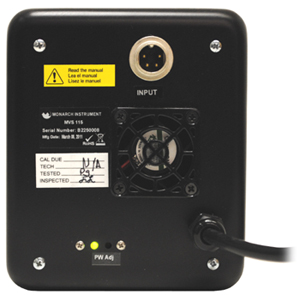

Machine Vision Stroboscopes, MVS 115, MVS 230, Machine, Vision, Stroboscopes, Monarch, InstrumentMVS 115 and MVS 230

Range: 1 to 9000 Flashes/Minute (150Hz)
Flash Energy/Duration: 450 mJoule up to 4000 FPM / 10 to 100 microseconds
Light Output Power: 20 watts average
Trigger to Flash Delay: 5 microseconds
Operating Temp: 32° to 104°F (0° to 40°C) max 80% Humidity
Trigger Input: 3-12 volt positive going pulse at least 10usec wide
Input Power: 115 or 230 Vac 50/60Hz
Size/Weight: 5.75”L x 4.36”W x 5.0”H / 1.5 lbs.

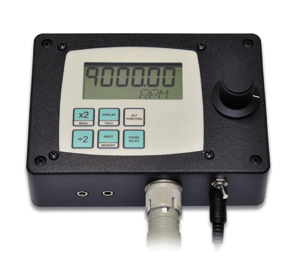

Machine Vision Stroboscopes, MVS 115, MVS 230, Machine, Vision, Stroboscopes, Monarch, InstrumentFrequency Controller with LCD

Range: ppm/Hz. 30-20,000 pulses per minute / 0.5-333 Hz
Display: 6 digit numeric and 5 digit alphanumeric LCD with backlight
Accuracy/Resolution: 0.002% of setting or +/- 1 lsd / 0.01PPM
Input/Output: Input: TTL (24Vdc Max) 1/8” (3.5mm) phone plug connector
Output: TTL (3.3Vdc), 1/8” (3.5mm) phone plug connector
Output: Threaded DIN connector. For direct connection to MVS Strobe power for LCD Frequency Controller provided by MVS when connected. 8 foot cable with connectors included
Tachometer Mode: 5-250,000, Use with optional remote sensors
Programmable Memory: Yes
Internal Phase Shift: Yes
Power Supply: PSC-2U Universal power supply, 115/230 50/60Hz, Supplied with USA, U.K., AUS and Euro adapter plugs.
Size/Weight: 5" x 3.5" x 1.5625" / 0.25lbs


MVS Machine Vision Stroboscope Brochure
