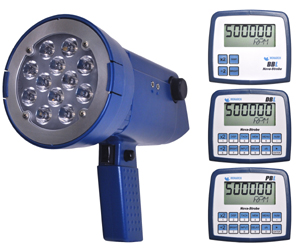

Nova-Strobe LED Portable Stroboscopes
|
Features •Flash rates from 30 to 500,000
flashes per minute Benefits of LED's •Energy efficient with long
battery life (8-10 hours typical) |
The
Monarch Nova-Strobe LED family of rugged industrial
stroboscopes provide an extremely bright, uniform
light output for performing stop motion diagnostic
inspection and RPM measurements. The twelve LED
light source is extremely efficient which means
long battery life and continuous cool operation.
A wide operating range of 30-500,000 flashes per
minute covers all applications. The Basic BBL
is designed for simple stop motion inspection
and RPM measurement applications. The Deluxe DBL
adds internal phase shifting, memory for up to
5 preset flash rates, N.I.S.T. calibration certificate
and tachometer mode for speed measurements up
to 500,000 rpm using optional remote sensors or
TTL pulse input/output. The top of the line Phaser
PBL has all the features of the DBL and adds external
phase delay, time delay and virtual RPM mode.
The PBL will also run continuously, 24/7 with
the power supply/recharger. Each unit is available
stand alone or as a kit.
|
