No combustible gas equipment installation or service work should be performed without testing for leaks. Check all pipes, fittings, and valves for gas leaks, if any leaks are found repair or replacement should be performed.
|
Moel
|
Feature
|
Benefits
|
Additional Info
|
|
719:
|
The 719 offers 30ppm sensitivity to detect combustible gasses. Easily operated with one hand, leaks are pinpointed using the audio and visual indicators. An adjustable “tic” rate helps eliminate background gas concentration in contaminated environments.
|
- Instant response
- 30 ppm (methane) sensitivity
- Adjustable tic rate
- One-hand operation
- Visual and audible leak indication
- 16'' gooseneck
- Soft carrying pouch
|
Data Sheet
Instruction manual
|
|

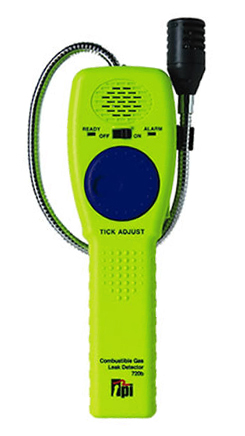

720B:
|
The 720B offers 10ppm sensitivity to detect combustible gasses. Easily operated with one hand, leaks are pinpointed using the audio and visual indicators. An adjustable “tic” rate helps eliminate background gas concentration in contaminated environments.
|
- Instant response
- 10 ppm (methane) sensitivity
- Adjustable tic rate
- One-hand operation
- Visual and audible leak indication
- 16'' gooseneck
- Soft carrying pouch
- surement capability
|
Data Sheet
Instruction manual
|

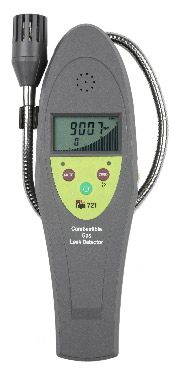

721:
|
The 721 offers 10ppm sensitivity to detect combustible gasses. Easily operated with one hand, leaks are pinpointed using the audio and visual indicators. An adjustable “tic” rate helps eliminate background gas concentration in contaminated environments. |
- Combustible Gas Leak Detector capable of displaying real ppm, stepped ppm, and %LEL (Lower Explosive Limit).
- 10ppm sensitivity (methane)
- Detect combustible gases including natural gas, propane, butane, etc.
- Thumbwheel adjustable tic rate to locate leaks quickly and accurately.
- Two line display with bargraph and backlight
- Audio / Visual alarm indication with user adjustable alarm point.
- Earphone jack for use in noisy environments.
- Approximately 20 hours of continuous use (C cell alkaline batteries x2)
|
Data Sheet
Instruction manual
|

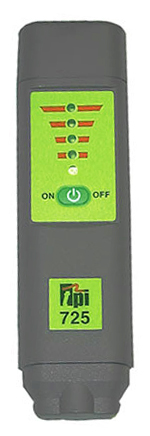

725:
|
The 725 offers 1000ppm sensitivity to detect combustible gasses including natural gas, methane, propane (LPG), diesel, and kerosene. |
- 1000ppm sensitivity
- Trace natural gas lines and fittings for leaks
- Check gas equipment for leaks
- Test propane tanks, fittings, lines, and heaters for leaks
|
Product Sheet
Instruction manual
|

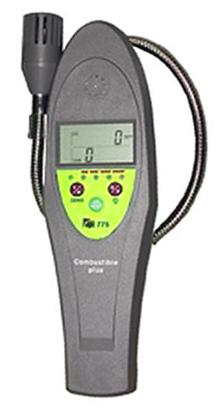

775:
|
Measure carbon monoxide and find combustible gas leaks with one tester. The TPI 775 combines combustible gas leak detection with ambient CO measurement and is the first of its kind to combine these technologies in one easy to use affordable hand-held instrument. |
- Combo ambient CO and combustible gas leak detector
- One-hand easy to use
- Auto and Manual Zero
- Adjustable tic rate
- Backlight
- Audible & visual alarms
- Flexible 16'' gooseneck
- Soft carrying case
|
Product Sheet
Instruction manual
|

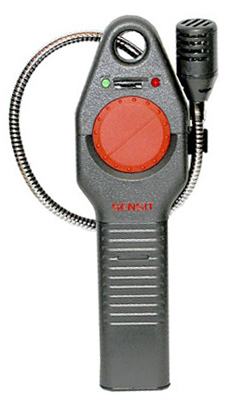

HXG2:
|
As lightweight and portable as it is sensitive, the HXG2 helps you pinpoint the smallest leaks quickly and accurately. Its calibrated alarm will indicate dangerous concentrations of combustible gases. |
- UL 913 intrinsically safe
- Calibrated to NIS traceable standards
- Instant response
- 10 ppm sensitivity
- Adjustable tic rate
- Settable alarm
- Visual and audible leak indication
- 16'' gooseneck
- Hard carrying case
|
Product Sheet
Instruction manual
|

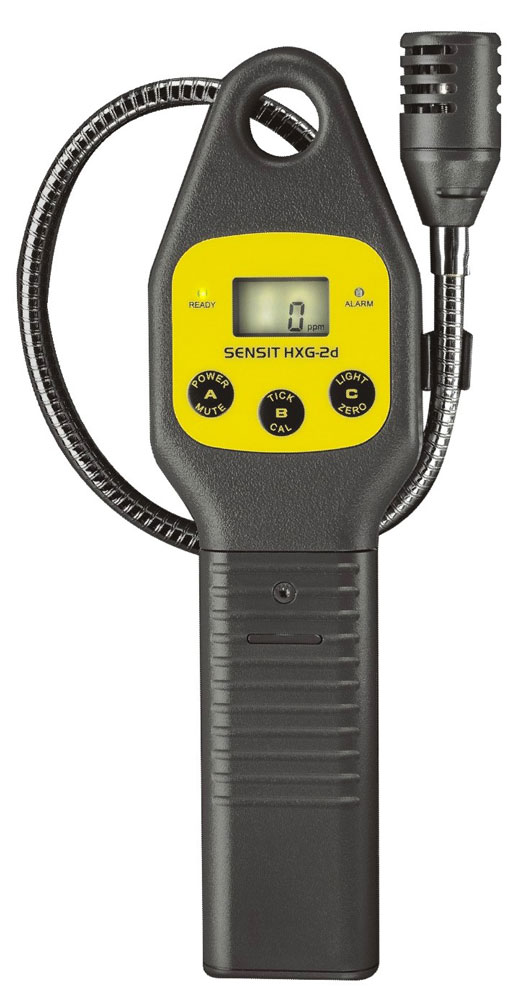

HXG-2D:
|
The HXG-2D offers 10ppm sensitivity to detect combustible gasses. Easily operated with new “patent pending” electronic tick control, leaks are pinpointed using the audio and visual indicators. Backlit LCD display of gas leaks in ppm or %LEL. |
- Combustible Gas Leak Detector capable of displaying ppm or%LEL (Lower Explosive Limit).
- Designed to meet UL 913 intrinsic safety (Approval Pending)
- 10 ppm sensitivity (methane)
- Instant response
- Electronic tick rate control
- Settable alarm
- Visual and audible leak indication
- 16'' gooseneck
- Hard carrying case
|
Data Sheet
Instruction manual
|
