Examiner 1000 Vibration Meter For A Predictive Maintenance Program from Monarch Instrument

Examiner 1000, Vibration Meter, Predictive Maintenance, Program, Monarch, InstrumentThe Examiner 1000 is designed for ease-of-use in condition-based maintenance programs. It is the ideal tool to begin a Predictive Maintenance Program or to add into an existing World-Class Maintenance Program with FFT data collectors and Analysis Software.

Examiner measures vibration in:
Acceleration
Velocity
Acceleration Enveloping

Specifications

  • Vibration Sensor: Piezoelectric Accelerometer 100 mV/g
  • Display: 3.5 digit LCD with measurement, Hold and Low Battery indicators
  • Range Acceleration: 0.01 to 19.99 g (RMS)
  • Velocity: 0.01 to 19.99 in/sec (RMS) 199.9 mm/sec (RMS)
    0.20 to 500 mm/sec (RMS)
  • Frequency Range Overall: 10 Hz to 10 kHz
  • Envelope: 0.5 kHz to 10 kHz
  • Output Audio: (3.5 mm) mini plug
  • Sensor Power: 12 vdc @ 2mA
  • Power: (2) Alkaline "AA" batteries
  • Operating Time: 20 hours continuous
  • Weight: 2.85 LB (1.30 kg) for complete kit
  • Dimensions: 6.3 x 3.3 x 1.25" (152 x 83 x 32 mm)
  • Operating Conditions: -14 to 122 F (-10 to 50 C)

Features:

Features Benefits
One-button operation Ease of use. No training.
Interactive vibration training available.
Front Panel Severity Chart Instant assessment of vibration. Plan your repairs.
Multi-parameter readings Power to trend defects and eliminate unplanned failures.
Stethoscope Hear what you see in the digital display. You do not have to give up a proven troubleshooting technique-"listening"
Made by Monarch reliable, accurate and affordable.

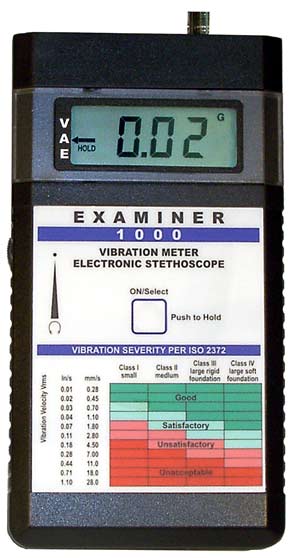

Vibration is considered the best operating parameter to judge dynamic conditions such as : The Examiner 1000 is a hand-held, battery-powered overall vibration meter and electronic stethoscope. It is the perfect tool for trending overall vibration readings in process equipment such as :
balance
bearing defects
lubrication 		Rolling element bearing
 Motors AC/DC
 Pumps
 Gearboxes
 Compressors
 Fans

OnTime Trending Software for Windows®

Routine trending of vibration and process information is the best method to judge performance and changing operating conditions of your machinery. OnTime GP helps you to manage all key machinery operating conditions.
