Monarch Instrument Fiberscopes provide superior image quality and allow quick inspection of enclosed areas. Save time and money preventing unnecessary disassembly of complex machines. Available in (2) Models with a variety of lengths and 5.8 mm or 10 mm diameters. |
|
Compare Image Quality
|
|
Monarch Fiberscope with 7400 pixels
|
Competing Fiberscope
|
Monarch Instrument Flexible Fiberscopes 2 Styles to choose from
Download A Data Sheet
|
Monarch FSI
(internal illumination)
|

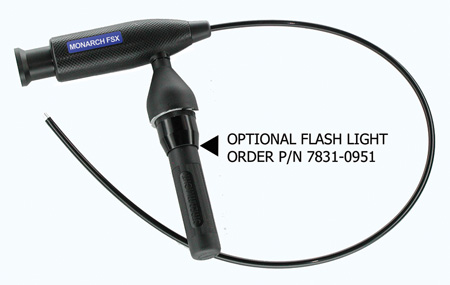

Monarch FSX
(external illumination required) |
|
|
| Available with either LED or Halogen light |
Must purchase optional external flash light |
|
How does it Work... |
 Based on innovative new fiber optic technology, the flexible cable of the fiberscope fits into holes as small as ½ inch diameter – allowing you to look behind walls, down into drains, inside engines, or hundreds of places without costly demolition or disassembly! The high-resolution lens provides a clear image of objects as close as ¾ inch and over one foot away while providing a wide 40 degree field of view. A powerful lamp illuminates dark crevices on-demand with the push of a button conveniently located on the handle. The ergonomically designed handle is comfortable to hold and allows one-handed focuses and light activation.
|
|
Monarch FSI Features |
Powerful lamp illuminates dark locations for clear viewing
Flexible, omni-directional cable bends in every direction to allow precise viewing
Pressure activated light switch is conveniently located but cannot be accidentally left "on"
Integrated focus ring for smooth, continuous focusing
Ergonomically designed, non-slip handle fits comfortably in one hand
Cable will reach deep into walls, drains, vents, engine blocks, requires only a ½ inch opening.
|

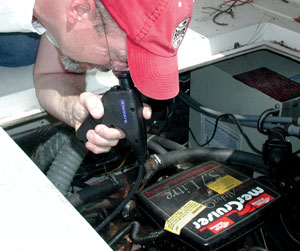

Applications---
The possibilities are endless
Mechanics
Welders
Plumbers
Inspectors
Carpenters
HVAC Repair
Electricians
Law Enforcement
Exterminators
Home Owners and more...

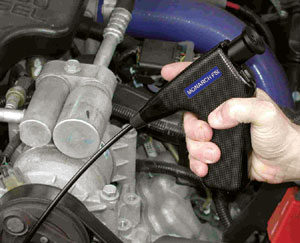

Ideal for automotive applications even home inspection-- water and chemical resistant.
|
|
TECHNICAL SPECIFICATIONS
Monarch FSI and FSX Fiberscopes |
| Number of pixels |
7400 |
| Field of view |
40° |
| Minimum focus distance |
0.75 inch |
| Operating Temperature |
-10 to 120° F |
| Housing |
ABS plastic |
| Bending radius |
3 inches |
| Water and Chemical Resistant |
. |
|
|
|
Accessories for Monarch Fiberscopes
|
Magnet Attachment for Monarch Fiberscopes 5.8mm or 10mm
|
 Mirror Attachment for Monarch Fiberscopes 5.8mm or 10mm
|
 Scorpion Xenon Flash Light for use with Monarch FSX Models
|
| |
|
