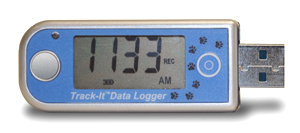

Track-It™ Temperature Data Logger From Monarch Instrument

Track-It, Temperature Data Logger, Temperature, Data, Logger, Monarch, InstrumentThe Track-It™ Temperature Data Logger is a battery powered stand alone compact data logger that records up to 64,000 samples of temperature data. The unit is easily configured using the included Track-It™ Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours.

The on board data storage is non-volatile so data will not be lost in the event of a depleted battery. The Track-It™ Temp Logger can be ordered with or without an LCD display. Information displayed on the LCD is also user programmable and can be sequenced by pressing the logger button. Both models have a multicolored LED indicator to notify user of alarms or general activity. A splash proof protective cover protects the logger when in use.

Features

  • Push button to start recording immediately or program to start recording at a later time and date
  • Up to 64,000 data samples per recording session
  • Multiple alarm set points
  • Compact Size
  • Integral USB connector
  • Powerful interactive Track-It Software package included
  • 1 year or 5 year lithium battery options
  • Wide temperature range 0 to 185 deg. F (0 to 85 deg. C)
  • Full 0 to 100% humidiity range
  • High accuracy and repeatability
  • Accurate internal clock (1 minute per year)
  • Dewpoint calculation standard
  • Multiple user programmable displays
  • N.I.S.T. calibration available

Typical Uses

  • Shipping
  • Warehouse
  • Food
  • Museums
  • Buildings
  • Laboratories
  • Libraries
  • HVAC
  • Refrigeration
  • Pharmaceutical
  • Agriculture
  • Computer Rooms
  • Communications Equipment
  • Bulk Dry Storage Monitoring

Track-It Software

Track-It™ Software is a powerful Windows based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data.Simply connect your Track-It™ data logger to an open USB port and begin communicating immediately.

Point and click to select your sample interval, alarm set points, engineering units, start recording triggers and LCD Displays.

View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the record. Track-It™ Software turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one click export function to automatically export stored data into an Excel spreadsheet.

Compatible with Win XP/Vista/7, 32 and 64 Bit
