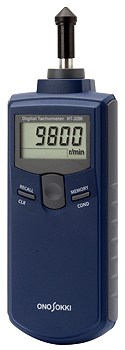

HT-3200 Handheld Digital Tachometers From ONO SOKKI

CE markingHT-3200, Handheld, Digital, Tachometers, ONO SOKKI The HT-3200 offers a Lo measurement range that starts from 0.5 r/min. The circumferential ring and contact tip for rotation measurement can be stored in the back-side pocket of the main body.


HT-3200, Handheld, Digital, Tachometers, ONO SOKKI



  • Capable of measurement from a low speed at 0.5 r/min (when low range selection) up to a high speed at 10,000 r/min (when high range selection).

  • A large-size display device (10.5-mm character height) is incorporated into the compact, lightweight device.

  • Built-in convenient memory function for easy confirmation of the measured results

  • Dual-purpose type—replacing the contact tip with the circumferential ring enables circumferential measurement

  • Equipped with a storage pocket for the circumferential ring

  • The latest measurement value continues to be displayed for approximately 30 seconds even after the power has been switched off.

  • Battery replacement time indicator is provided.

HT-3200, Handheld, Digital, Tachometers, ONO SOKKI



Detection method Contact method
Display 5-digit LCD (10.5-mm character height)
Measurement update time 1-s automatic update (2-s update for Lo range : 0.5 to 1.0 r/min)
1-s automatic update (2-s update for Hi range : 5 to 10 r/min)
Rotation speed measurement range 0.5 to 10,000 r/min (Lo : 0.5 to 2,000.0 r/min, Hi : 5 to 10,000 r/min)
Circumferential speed measurement range When the KS-200 circumferential ring (provided) is used : 0.05 to 1000.0 m/min
When the KS-100 circumferential ring (option) is used : 0.5 to 10,000 mm/s
Measurement accuracy Low (Lo) range: 0.5 to 1249.9 r/min speeds Within ±0.1 r/min
                       1250.0 to 2000.0 r/min speeds Within ±0.2 r/min
High (Hi) range: 5 to 10,000 r/min speeds Within ±1 r/min
Memory function 10 data can be memorized.
Data hold function Auto power off when 30 seconds have elapsed after the end of measurement.
Low battery indication The “LOW” mark is displayed when the battery voltage falls below 3.3 V.
Over-range display An “ERROR” mark is displayed.
Power source Three AAA-type batteries (1.5 V)
Continuous measurement time: Approx. 20 hours (when alkaline batteries are used, at 20șC)
Operating temperature 0 to +40șC
Storage temperature -20 to +55șC
Outer dimensions 63 (W) x 172 (L) x 38.5 (D) mm
Weight Approx. 200 g (including batteries)
  • Contact tip for rotation measurement (KS-300) 2 pieces
    (One tip can be stored in the back side pocket main body)
  • Circumferential ring (KS-200, m/min) 1 piece
    (can be stored in the back-side pocket of main body)
  • AAA-type batteries 3 pieces
  • User’s manual 1 copy


Peripherals (sold separately)

KS-100 Circumferential ring (mm/s) KS-200 Circumferential ring (m/min)
製品写真(KS-100 周速リング) 製品写真(KS-200 周速リング)
KS-300 Contact tip (for rotation measurement) KS-700 Extension shaft for KS-300
製品写真(KS-300 回転接触子) 製品写真(KS-700 延長用シャフト)

This is a handheld type tachometer for measurement and maintenance of rotation machineries. We provide four types of tachometer (contact, non-contact, contact and non-contact, and external sensor). Every type can be easily operated and measures the rotation precisely. They are used in the various applications for periodic maintenance of mechanical equipments and for hobby products etc.

*It is dangerous to measure rotating machinery at high speed by the contact type tachometer. Please use the goggle or the like with careful attention not to get involved to the rotating machinery or not to detach the contact tip from the main unit.
* Before affixing a reflective mark onto the measurement object, please make sure that the rotating shaft is completely stopped.
