All TPI Clamp-on Meters have a 3-year limited warranty.
TPI offers a full line of digital clamp-on meters for electrical, commercial, HVAC/R, industrial and process control applications.
|
Model
|
Measurement
Range
|
Feature/Benefits
|
Additional Info
|
|
265:
|
AC Amps
...400
Frequency
...40 MHz
Capacitance
...4,000 uF
AC Volts
...600
DC Volts
...600
Resistance
...40 Meg Ohm
Basic DC accuracy
...0.5%
|
- Slim jaw and body design for use is crowded electrical panels.
- Capacitance up to 4,000 micro-farads
- Frequency
- Up to 400 AC amps with 0.01 resolution
- AC/DC volts up to 600
- 0.1 DC millivolt resolution
- Diode, resistance and audible continuity
- CAT III 600V rated
- cULus 61010
- 3-year limited warranty
|
Product Sheet
Instruction manual
|

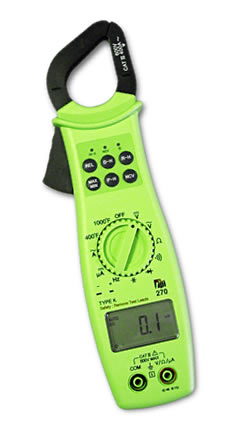

270:
|
AC Amps
...400
Frequency
...400 MHz
Capacitance
...4,000 uF
Temperature
...1,000 F
AC Volts
...600
DC Volts
...600
Resistance
...40 Meg Ohm
Basic DC accuracy
...0.5%
|
- 400 Amps AC
- Measure motor in-rush current and run current
- Measure temperature differential using relative mode
- Frequency, Min/Max/Record, Data Hold and Peak Hold
- Up to 40,000 microfarads to test start and run capacitors
- 4,000 count display with 41 segment analog bar graph
- CAT III 600V rated
- cULus 61010
- 3-year limited warranty
|
Product Sheet
Instruction manual
|

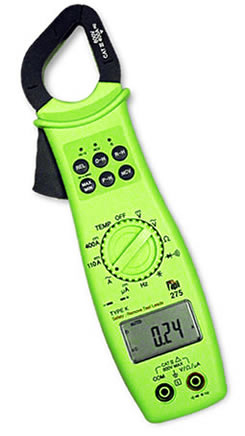

275:
True RMS AC/DC Amps
|
AC Amps
...400
DC Amps
...400
Frequency
...40 MHz
Capacitance
...4,000 uF
Temperature
...1,000 F
AC Volts
...600
DC Volts
...600
Resistance
...40 Meg Ohm
Basic DC accuracy
...0.5%
|
- True RMS 400 Amps AC/DC
- Measure motor in-rush current and run current
- Measure temperature differential using relative mode
- Non-contact voltage (NCV) feature to see if power is being supplied to the 24 VAC control circuit
- Up to 4,000 microfarads to test motor start and run capacitors
- Frequency, Min/Max/Record, Data Hold and Peak Hold
- 11,000 count display with 41 segment analog bargraph
- CAT III 600V rated
- cULus 61010
- 3-year limited warranty
|
Product Sheet
Instruction manual
|

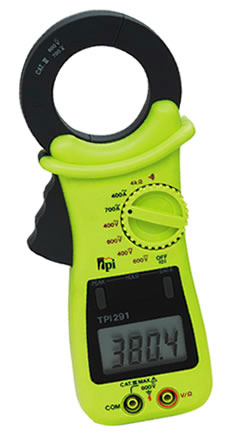

291:
700 AC Amps
|
AC Amps
...700
AC Volts
...600
DC Volts
...600
Resistance
...4,000 hm
Basic DC accuracy
...0.75%
|
- 700 Amps AC
- Measure AC/DC volts, resistance and continuity
- Peak hold function
- Data hold
- CAT III 600 V rated
- cULus 61010
- 3-year limited warranty
|
Product Sheet
Instruction manual
|

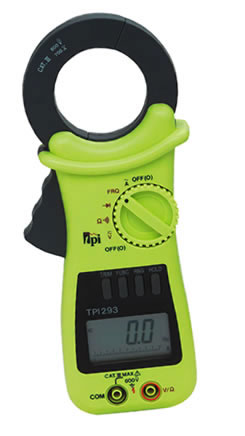

293:
True RMS
700 AC Amps
|
AC Amps
...700
AC Volts
...600
DC Volts
...600
Frequency
...40 MHz
Resistance
...40 Meg Ohm
Basic DC accuracy
...0.75%
|
- True RMS 700 Amps AC
- Measure AC/DC volts, resistance, continuity and frequency
- Peak hold
- Data hold
- CAT III 600 V rated
- cULus 61010
- 3-year limited warranty
|
Product Sheet
Instruction manual
|

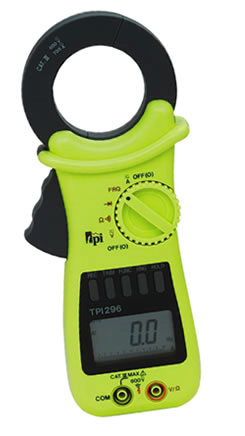

296:
True RMS
700 AC/DC amps
|
AC Amps
...700
DC Amps
...700
AC Volts
...600
DC Volts
...600
Frequency
...40 MHz
Resistance
...40 Meg Ohm
Basic DC accuracy
...0.75%
|
- True RMS 700 Amps AC/DC
- Trim mode for stable readings
- HDR mode to determine if signal is clean or dirty
- Measure AC/DC volts, resistance, continuity and frequency
- Data hold
- Min/Max/Peak hold
- Sleep mode
- CAT III 600 V rated
- cULus 61010
- 3-year limited warranty
|
Product Sheet
Instruction manual
|
