Fuji PXR Series Digital Temperature Controllers

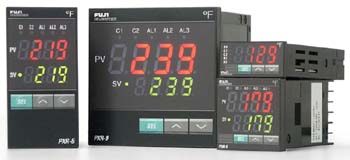

Fuji PXR Series, digital temperature controllers, temperature controllers, 1/32 DIN, Fuji PXR3, 1/16 DIN, Fuji PXR4, 1/8 DIN, Fuji PXR5, 1/4 DIN, Fuji PXR9, fuzzy logic controllersThe PXR series comes in several sizes - 1/32 DIN, 1/16 DIN, 1/8 DIN and 1/4 DIN. Besides the standard features including auto-tuning and fuzzy logic, they also come with self-tuning. This innovative feature automatically retunes the controller under certain conditions without the need to revert to auto-tuning.

The standard 8-segment ramp/soak feature has been expanded to include two patterns that can be linked to create a 16 step profile. The PXR accepts temperature and process inputs and offers a choice of three kinds of outputs to meet a wide variety of process requirements. Low cost options include dual outputs, programmable alarms, remote setpoint, RS485 communications, analog retransmission, digital input, timer function, heater burnout alarm and 24V AC/DC supply voltage.

Other features include a large LED display and a NEMA 4X (IP66 equivalent) faceplate that is watertight and corrosion resistant. The easy to use 3 button keypad allows easy programming. The rear screw terminal makes connection easy and eliminates the cost of extra sockets. The PXR3 (1/32 DIN) can be DIN rail mounted with an optional adapter.

Remote monitoring of up to 31 controllers at a time is possible with the RS485 option that uses the industry standard Modbus protocol. The communications option comes with our free Windowsbased software PXR-LITE which allows programming the controller from the PC and viewing realtime data and a trend graph while logging data into a text file.

Models

Technical Data

  • Inputs: RTD- PT100; Thermocouples: J,KR,B,S,T,E,N,PL2

  • Current/Voltage: (0)4-20 mA, (0)1-5VDC (250 ohm shunt resistor included)

  • Display: Two 3 1/2 digit LED displays which can be programmed in Fahrenheit or Celsius for temperature sensors.

  • Outputs: Numerous options: for both Control Outputs: relay contact output; SSR or SSC drive output; 4-20 maDC ouput; Triac 1A, 250 VAC and additionally Retransmission (4-20 mA DC) for second Control Output Multiple Alarm options

  • Power Supply: Standard (100-240V AC, 50/60 Hz) or 24 V AC/DC (50/60 Hz)

  • Details: Download data sheet for full details of specifications, options and ordering codes.
