ProVu Digital Panel Meters From Precision Digital

The PD6000 digital panel meter is a full-featured, high end, digital process meter that represents the continuum of 34 years of development by Precision Digital Corporation. The most noticeable feature of the ProVu is its dual-line, 6-digit display that not only provides more data to the user, but makes it much easier to program than single line displays. Other key features include
NEMA 4X front, 24 V transmitter power supply and 32-point linearization. Options include 2 or 4 relays and 4-20 mA output, expansion modules for 4 more relays, digital I/O, and serial communications, and DC power.

PD6000: ProVu Dual-Line Digital Process Meter

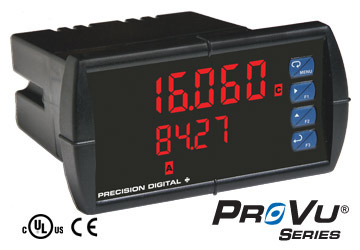

The PD6060 dual-line digital panel meter is a full-featured, high end, digital process meter with math capability. It shares all the great features of the ProVu series. In addition, it can be used as a dual-channel meter, or programmed to calculate a third variable using the dual input values. The PD6060 is one of the Precision Digital's most powerful members of our 1/8 DIN meter family. Other key features include NEMA 4X front, 24 V transmitter power supply and 32-point linearization. Options include 2 or 4 relays and 4-20 mA output, expansion modules for 4 more relays, digital I/O, and serial communications, and DC power.

PD6060: Dual-Input Digital Process Meter with Math Capability

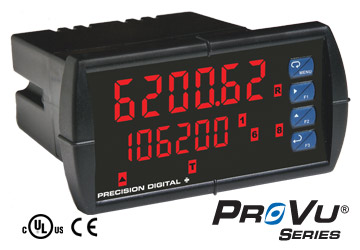

The PD6200 digital panel meter is specifically designed for displaying flow rate and total from a flow meter with an analog output such as 4-20 mA or 0-10 V. The PD6200 is particularly well-suited for flow applications because its six-digit, dual-line display can be programmed for a wide variety of display configurations. For instance, the upper line can display either flow rate, total or grand total, and the lower line can display either flow rate, total, grand total, or engineering units. Among other things, this makes it possible to display flow rate and total at the same time, a very unique feature on 1/8 DIN digital meters.

PD6200: ProVu Analog Input Dual-Line Flow Rate/Totalizer

The PD6210 shares some great features common to the ProVu series. With a variety of analog inputs, it offers single and multi-stage batch control with preclose relays, intuitive front panel, and simple menu navigation. The PD6210 has excellent but simple batch control capabilities. The preclose deactivates the relay before the batch is finished, to allow slower fill rates and a more accurate batch finish. With expansion module relays, up to eight-stage batching is possible. Each additional stage-batching relay has an individually programmable preclose amount. Automatic overrun correction keeps the batch size accurate, even over time and with system wear.

PD6210: ProVu Analog Input Batch Controllers

The PD6300 is specifically designed for displaying flow rate and total from a pulsed input provided by open collector, NPN, PNP, TTL, switch contact, sine wave, or square wave. The PD6300 is particularly well-suited for flow applications because its six-digit, dual-line display can be programmed for a wide variety of display configurations. For instance, the upper line can display either flow rate, total or grand total, and the lower line can display either flow rate, total, grand total, or engineering units. Among other things, this makes it possible to display flow rate and total, or total and grand total at the same time, a very unique feature on 1/8 DIN digital meters.

PD6300: ProVu Pulse Input Dual-Line Flow Rate/Totalizer

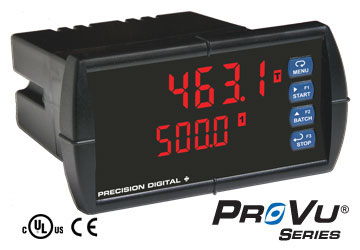

The PD6310 shares some great features common to the ProVu series. With a variety of pulse inputs, it offers single and multi-stage batch control with preclose relays, intuitive front panel, and simple menu navigation. The PD6310 has excellent but simple batch control capabilities. The preclose deactivates the relay before the batch is finished, to allow slower fill rates and a more accurate batch finish. With expansion module relays, up to eight-stage batching is possible. Each additional stage-batching relay has an individually programmable preclose amount. Automatic overrun correction keeps the batch size accurate, even over time and with system wear.

PD6310: ProVu Pulse Input Batch Controllers

The PD7000 boasts specifications and functionality that clearly makes it one of the most advanced temperature meters available. Its dual-line 6-character display, function keys, and optional expansion modules are only a few of the special features available on the ProVu. The PD7000 accepts many more thermocouple types and RTDs than earlier models. It can be configured to have either a 1° or 0.1° display resolution on any type of sensor input. The lower display makes configuration simpler. The display itself is quite configurable. There are many relay functions for up to 8 relays; including an Interlock Relay function. The 4-20 mA output can represent up to 12 different parameters/variables. This makes the PD7000 one of the most versatile meters on the market.

PD7000: ProVu Dual Line 6 Digit Temperature Meter
