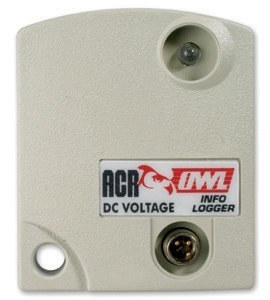

ACR OWL 400 Single-Channel DC Voltage Data Logger

OWL 400,Single,Channel,DC,Voltage,Data,Logger,ACR,SystemsThe ACR OWL 400 data logger is a rugged and versatile data logger that records DC voltage with ease and convenience. This logger is ideal for monitoring (through commercially available transducers) a wide variety of measurement parameters. All voltage signals can be converted into custom engineering units using the simple equation editor in ACR's TrendReader 2 software.







Specifications

Input Range
0 to 38.4 Volts DC (32 software selectable ranges available)
Accuracy
+/- 1% of full scale
Memory Size
32 KB
Input Impedance
Greater than 100 K ohms

Ordering Information

Model Case Catalogue #
OWL-400 NORYL® Plastic 01-0253
