The

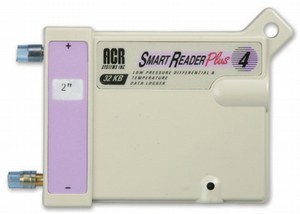

ACR SmartReader Plus 4 LPD (Low Pressure
Differential) 2-channel low pressure differential
data logger is a two channel logger with
internal pressure and temperature sensors.
The low pressure sensor is built into the
logger and is capable of measuring low gauge
and differential pressure.
Specifications
Sensor Type:
|
Silicone piezoresistive strain gauge |
Pressure Ranges:
|
+/- 0.5" WC (water column)
+/- 1.0" WC
+/- 2.0" WC
+/- 5.0" WC
+/- 10" WC |
Maximum Pressure:
|
4 times full scale |
Media:
|
Non-corrosive gases and dry air |
Accuracy:
|
Calibrated:
+/- 0.05” for 0.5”, 1.0” and 2.0” ranges
+/- 1.0” for 5.0” and 10.0” ranges
Thermal:
+/- 0.5% FS (over compensated range) |
Resolution:
|
< 0.01” WC |
Non-linearity:
|
+/- 0.05% FS (best fit straight line) |
Hysteresis & Repeatability:
|
+/- 0.05% FS (typical) |
Long-Term Stability:
|
+/- 0.5% FS |
Ordering Information
Model |
Memory |
Catalogue # |
SRP-004-LPD-0.5 |
32 KB |
01-0310 |
SRP-004-LPD-1.0 |
32 KB |
01-0311 |
SRP-004-LPD-2.0 |
32 KB |
01-0312 |
SRP-004-LPD-5.0 |
32 KB |
01-0313 |
SRP-004-LPD-10.0 |
32 KB |
01-0314 |
