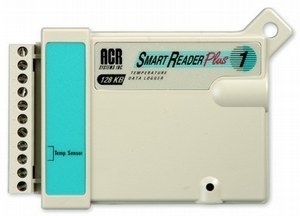

The
ACR SmartReader Plus 1 2-channel temperature data
logger is a powerful and accurate data logger designed
for easy monitoring and recording of temperature.
With one internal ambient temperature channel and
an input for an optional remote temperature or contact
closure sensor, the SmartReader Plus 1 is ideal for
quick and accurate temperature recordings in a variety
of applications.
Specifications
|
Channels
|
Two (one for internal temperature sensor and one for remote sensing of temperature, switch status or resistance) |
|
Accessories
|
ACR ET Series Temperature Probes or any NTC thermistor probe |
ACR Temperature Probes
|
General Purpose
|
-35 to 95°C (-30 to 200°F) |
|
Low Temperature
|
-60 to 55°C (-75 to 130°F) |
|
Low Temp Penetration
|
-60 to 55°C (-75 to 130°F) |
|
High Temperature
|
10 to 170°C (50 to 335°F) |
|
Oven Temperature
|
70 to 255°C (155 to 490°F) |
|
Skin Surface Temperature
|
20 to 40°C (68 to 104°F) |
|
Pipe Surface Temperature
|
-35 to 95°C (-30 to 200°F) |
|
Waterproof Temperature
|
-40 to 105°C (-40 to 221°F) |
Ordering Information
| Model |
Memory |
Catalogue # |
| SRP-001 |
32 KB |
01-0008 |
| SRP-001-128K |
128 KB |
01-0112 |
| SRP-001-1.5M |
1.5 MB |
01-0141 |
