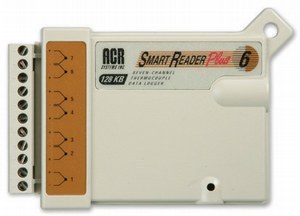

ACR SmartReader Plus 6 8-Channel Temperature Data Logger

SmartReader,Plus 6,8-Channel,Temperature,Data,Logger,ACR,SystemsMonitor temperature over a wide range with the ACR SmartReader Plus 6 8-channel temperature data logger. Easily and accurately record temperature from any J, K, S, T or E type thermocouple probe. With seven inputs for thermocouple probes and an on-board cold-junction thermistor, the SRP6 is one of the most versatile thermocouple data loggers available.



Specifications

Accuracy
 +/- 0.5% of range + resolution
Thermocouple Specs
 Range and Resolution:
J type: -50 to 600ºC (-55 to 1100ºF); 0.30ºC (0.55ºF)
K type: -100 to 1150ºC (-145 to 2100ºF); 0.50ºC (0.90ºF)
S type: 0 to 1450ºC (32 to 2642ºF ); 1.0ºC (1.8ºF)
T type: -200 to 400ºC (-325 to 750ºF); 0.40ºC (0.75ºF)
E type: -50 to 680ºC (-58 to 1250ºF); 0.24ºC (0.44ºF)
Accessories
 ACR Thermocouple Wire or any J, K, S, T and E type thermocouples

Ordering Information

Model Memory Catalogue #
SRP-006 32KB 01-0013
SRP-006-128K 128 KB 01-0122
SRP-006-1.5M 1.5 MB 01-0151
