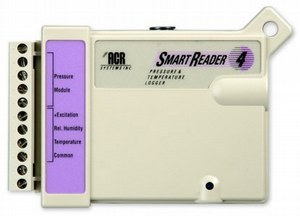

ACR SmartReader 4 5-Channel Pressure, Temperature & RH Data Logger from ACR Systems

SmartReader 4,5-Channel,Pressure,Temperature,RH,Relative Humidity,Data Logger,ACR,SystemsThe ACR SmartReader 4 5-channel pressure, temperature & RH data logger records pressure, temperature and relative humidity. Use it to monitor and troubleshoot pneumatic systems. With a variety of pressure sensors available, you can tailor the logger to suit your needs. As an added bonus, the SmartReader 4 can also monitor temperature and relative humidity. All probes and sensors are sold separately.





Specifications

Accessories
ACR Pressure Modules
ACR RH-002 RH Sensor
ACR EH-020A Temp/RH Probe
ACR ET Series Temperature Probes
Calibrated Accuracy
+/- 0.5% F.S. @ 25°C (77°F)
Pressure Modules
(absolute and gauge)
Range and Resolution:
0 to 5 psi (30 kPa) , 0.03 psi (0.21 kPa)
0 to 30 psi (200 kPa) , 0.15 psi (1.0 kPa)
0 to 100 psi (700 kPa) , 0.5 psi (3.5 kPa)
0 to 150 psi (1000 kPa) , 0.5 psi (3.5 kPa)
Accuracy
+/- 4% F.S. above 10% of range


Ordering Information

Model Memory Catalogue #
SR-004 32KB 01-0027
